WSJT-X Settings for IC-7200

I have WSJT-X installed on Linux Mint. Here are screenshots of the main config panels.

Please note that I launch it from a terminal window as:
sudo wsjt-x

to gain access to the com ports.

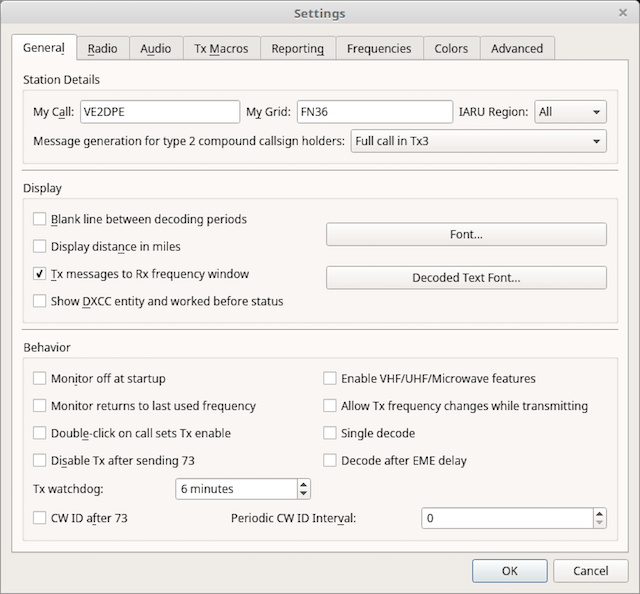

WSJT-X general settingsGeneral settings pane

Note that, in the snapshot above, IARU Region should be Region 2 in my case.

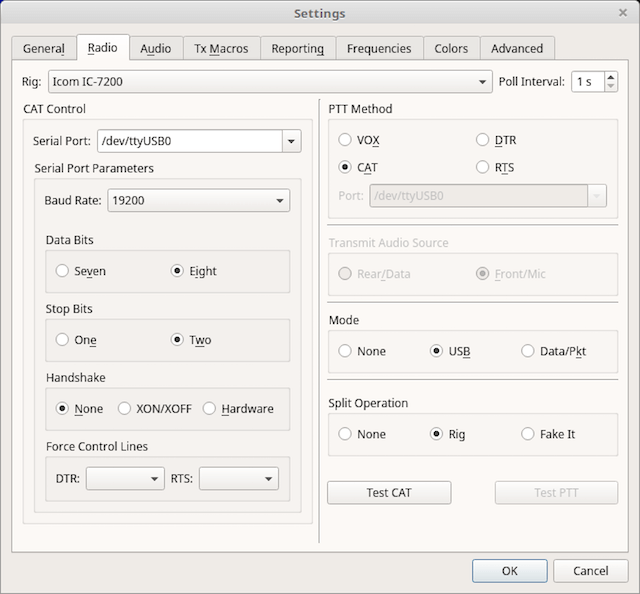

WSJT-X radio settings for IC-7200Radio settings pane

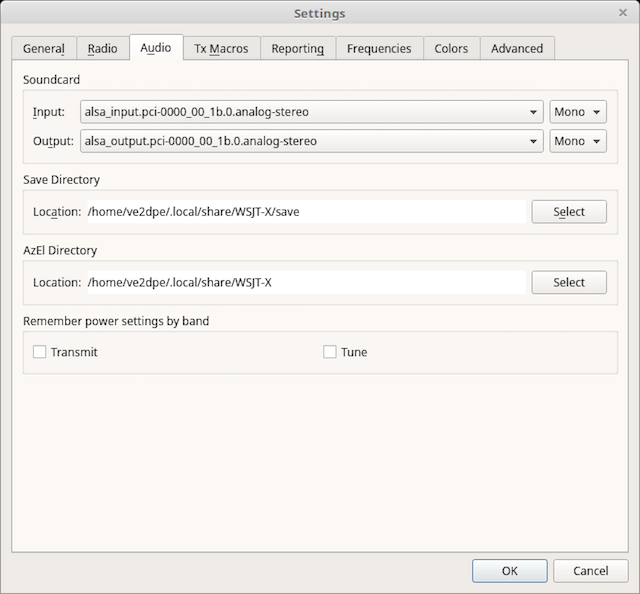

WSJT-X audio settings for IC-7200Audio settings pane


73 de VE2DPE
Claude Jollet
7, Rue de la Rive, Notre-Dame-des-Prairies, Québec, Canada J6E 1M9

QTH Locator: FN36gb
